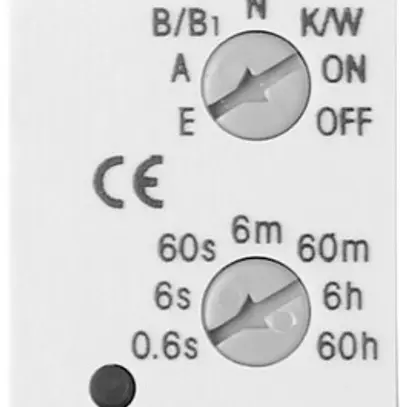

Relais temporisé ComatReleco CM3/24-48 VDC/24-240 VAC, 5 A, 250 VAC, pour socle DIN, boîtier gris, indication de position LED, commande par phase, tension de commande (-15/+10 %), 7 domaines partiels (ComatReleco CM3, 0.05…0.6 s à 5…6 h) programmables avec interrupteur
| largeur | 17.5 mm |
| hauteur | 77 mm |
| profondeur | 69 mm |
| indice de protection (IP) | IP20 |
| courant nominal | 5 A |
| type de raccordement électrique | raccordement à broches |
| tension d'alimentation de commande assignée DC | 24 - 48 V |
| tension d'alimentation de commande assignée AC 60 Hz | 24 - 48 V |
| tension d'alimentation de commande assignée AC 50 Hz | 24 - 240 V |
| type de tension pour actionnement | AC/DC |
| commandable à distance | Non |
| approprié pour profilé chapeau | Oui |
| enfichable sur contacteur | Non |
| nombre de sorties retardés, inverseur | 2 |
| nombre de sorties non retardés, inverseur | 2 |
| nombre de sorties non retardés, ouvreur | 0 |
| fonction conformateur d'impulsion | Oui |
| fonction de passage au déclenchement | Oui |
| fonction retardée à la retombée | Oui |
| fonction étoile/triangle | Non |
| fonction passage à l'enclenchement | Oui |
| fonction retardée à l'enclenchement | Oui |
| avec sortie de semiconducteur | Non |
| fonction synchronisante, commençant avec impulsion, réglable | Non |
| fonction synchronisante, commençant avec pause, réglable | Non |
| fonction clignotante commençant par impulsion, temps fixe | Non |
| fonction clignotante commençant par pause, temps fixe | Oui |
| convient comme télécommande | Non |
| avec socle à ficher | Non |
