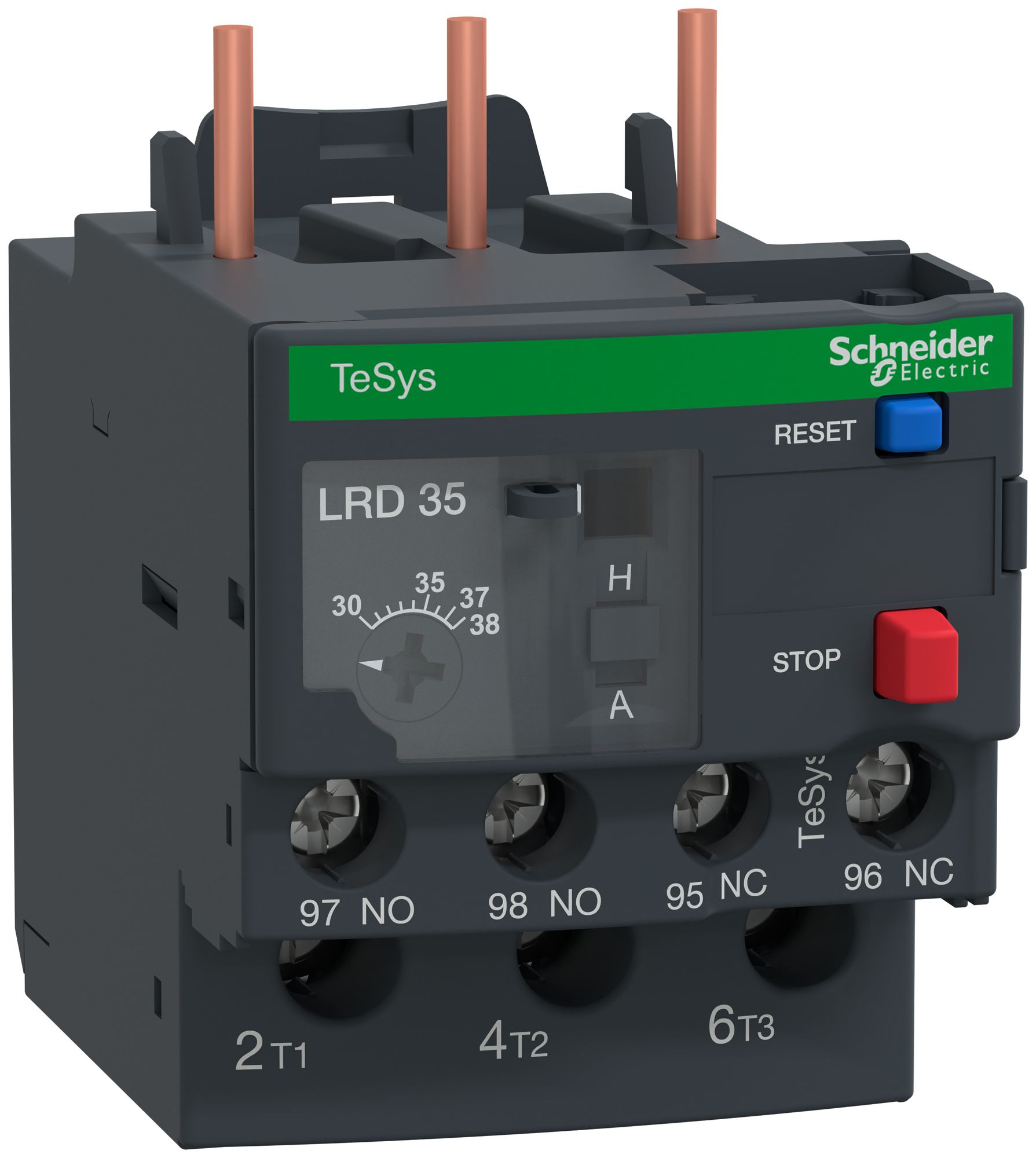

Relè termico LRD35 30…38A TeSys
Effettua il login per poter utilizzare il carrello della spesa e completare gli ordini.
AccedereN. ELDAS®514289450EAN:3389110346862WG.FG:24.52Unità di imballaggio:
24
Pezzo
Nr. produttore:LRD35
Descrizione
Relè termico LC1D32, lC1D38, riarmo manuale/automatico, compensato in temperatura, sblocco differenziale, pulsante OFF-RESET, sblocco test, fusibile di riserva ritardato 200 A, adatto per stella-triangolo, attacco al contattore, +38 mm
Varianti di modello
:strip_icc():strip_exif()/pim/2e/2e553855-c488-4578-8474-de144d967c09.jpg)
:strip_icc():strip_exif()/pim/1d/1dedfb91-f528-43cc-b972-9bb3c6ef5ff1.jpg)
:strip_icc():strip_exif()/pim/e7/e7aa32ad-2f09-4d11-8010-52269bd40415.jpg)
:strip_icc():strip_exif()/pim/5b/5b9b330a-787a-467d-9eeb-27eba7cfb46d.jpg)
:strip_icc():strip_exif()/pim/f9/f9e49aff-cdaf-4d27-98eb-64f410fff991.jpg)
:strip_icc():strip_exif()/pim/d4/d4db9c7a-bb2a-4f9a-961a-504a157f3a31.jpg)
:strip_icc():strip_exif()/pim/3e/3e1b3915-5017-4f10-8912-578805ca204d.jpg)
:strip_icc():strip_exif()/pim/b1/b194c2f7-a8eb-4f9c-8e95-5b4891153112.jpg)
:strip_icc():strip_exif()/pim/9d/9d2b3409-5937-464a-bf83-92d79403bf43.jpg)
:strip_icc():strip_exif()/pim/df/df0c1499-dede-49f7-9f6b-33caefa0e9a6.jpg)
:strip_icc():strip_exif()/pim/81/81fadc65-64cc-4879-a0d3-fd43cb7f9200.jpg)
:strip_icc():strip_exif()/pim/23/23b05fb8-b91d-4393-be07-4908cd64e796.jpg)
:strip_icc():strip_exif()/pim/0e/0e98611f-7e4b-4999-8fce-793906d7a15a.jpg)
:strip_icc():strip_exif()/pim/55/5521b898-b0ec-48f0-bbb4-b451fd9457b6.jpg)
:strip_icc():strip_exif()/pim/3d/3db9744b-e0f0-4d67-bb46-feeeb8930352.jpg)
Specifiche tecniche
- intervallo di corrente regolabile
- 30 - 38 A
- max. tensione d’esercizio nominale Ue
- 690 V
- modo di montaggio
- applicazione diretta
- tipo di collegamento circuito elettrico principale
- raccordo a vite
- numero di contatti ausiliari, contatti di riposo
- 1
- numero di contatti ausiliari, contatti di chiusura
- 1
- numero di contatti ausiliari, invertitori
- 0
- classe di intervento
- classe 10 A
- ingresso a funzione reset
- No
- funzione reset automatica
- Si
- tasto di funzione reset
- Si
- Catalogo Eldas
- Capitolo 8 / Pagina 87
